Ash Handling Technologies

and other Bulk Material Solutions

Flow-control valves

  • used to control the flow of ash coming out during silo unloading
  • built under the silo hopper, bottom portion is aerated
  • well-proven, durable design
  • flow control valve for all kinds of bulk material
  • both inlet and outlet flanges can have unique dimensions
  • capable of continous flow adjusting with electric drive
  • for simple application it can be adjusted manually, if exact flow is required motor operated valve is recommended

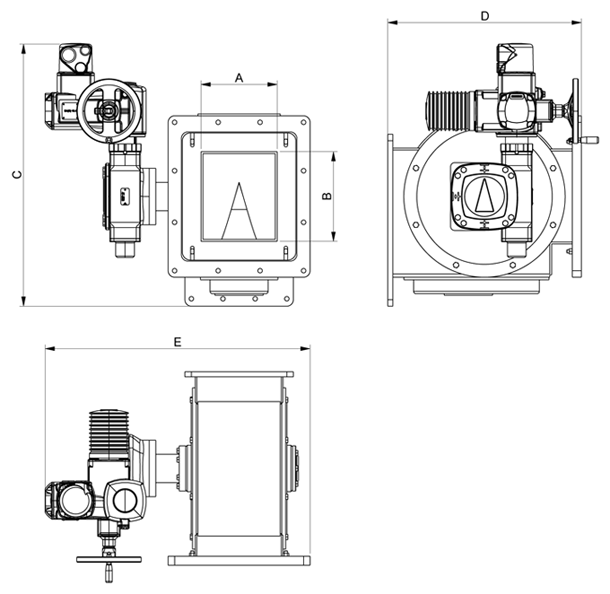

  dimensions in [mm] Weight Control range
Nominal size A B C D E [kg] [m3/h]
250
224 266 800 600 820 213 30-150
400
374 266 800 600 970 253 80-350
